Family and Product Details
The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS “Primary" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS “Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
- Branch Monitoring: Current (A)
- Branch Overcurrent Protection: 10 kAIC (North America) / (5 kAIC ROW)
- Branch Overcurrent Protection Type: Circuit Breaker: 1-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display: Auto-Orient
- Input Monitoring: PIPS
- Locking Outlets: Yes
- Max Operating Temperature: 60 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: POPS
- PDU Platform:
- Power Pivot Input: No
- Product Height (inch): 70.0
- Product Height (mm): 1778
- Product Max Depth (inch): 3.56
- Product Max Depth (mm): 91
- Product Nominal Depth (inch): 3.0
- Product Nominal Depth (mm): 77
- Product Width (inch): 2.2
- Product Width (mm): 56
- Product Specifications
★★★ C2WG24TB-4QCD27T0 (Switched POPS) Download Datasheet Input Power Capacity (kW): 43.4 Input Plug Type: 230/400V Wye 63A IEC 60309 3P+N+PE 6Hr Input Current (A): 63 Input Current Rated (A): 63 Input Nominal Voltage (V): 400 Input Phase: 3-Phase Wye (L-N) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 24 Cx Count: 24
★★★ C2WG24TB-5QCD27T0 (Switched POPS) Download Datasheet Input Power Capacity (kW): 34.5 Input Plug Type: 240/415V Wye 60A IEC 60309 3P+N+G 6Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 415 Input Phase: 3-Phase Wye (L-N) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 24 Cx Count: 24
★★★ UG - C2S Series Smart PRO2 (PRO1) – User Guide (Firmware Version 8.0) ★★★ UG - C2W Series Switched PRO2 (PRO1) – User Guide (Firmware Version 8.0) ★★★ UG - PRO2 (and PRO1) – User Guide (Firmware Version 8.0)
★★★ AN PRO2-001: How do I maximize uptime using power data from the equipment cabinet? ★★★ AN PRO2-002: How do I use a cabinet PDU to help manage equipment deployment? ★★★ AN SPM-001: How do I leverage cabinet PDU information to help plan for growth?
Have a power strategy expert contact me!

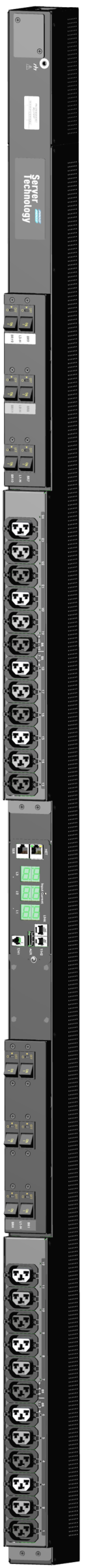

PRO2™ Switched POPS PDU - 34.5kW - 43.4kW 3-Ph (24) Cx HDOT outlets
