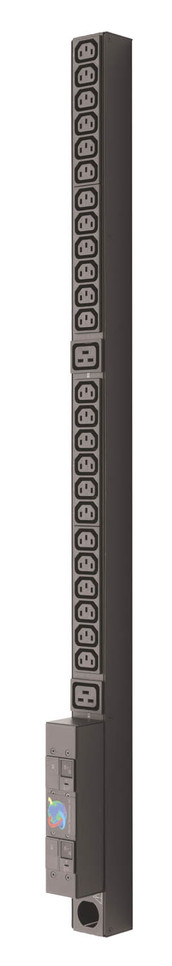

Basic CB-26VE 3.3kW - 7.3kW (24) C13 & (2) C19 outlets Rack PDU

Key Features

Branch Circuit Protection

This rack PDU meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
High Retention Locking Outlets

Receptacles have high retention and are compatible with P-Lock type power cords.
Flexible Mounting

This rack PDU includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
Color Identification

Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black.

Family Description

The Server Technology® Basic PDU provides reliable power distribution for installing IT equipment into the rack/cabinet.
Family Specifications
- Branch Monitoring: None
- Branch Overcurrent Protection: 5 kAIC
- Branch Overcurrent Protection Type: Circuit Breaker: 2-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display:
- Input Monitoring: None
- Locking Outlets: Yes
- Max Operating Temperature: 50 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: None
- PDU Platform: None
- Power Pivot Input: No
- Product Height (inch): 35.5
- Product Height (mm): 902
- Product Max Depth (inch): 3.39
- Product Max Depth (mm): 87
- Product Nominal Depth (inch): 1.75
- Product Nominal Depth (mm): 45
- Product Width (inch): 1.75
- Product Width (mm): 45

★★★ CB-26V0AE01F6 (Basic) Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7
Download Datasheet
Input Power Capacity (kW):	3.6
Input Plug Type:	IEC C20 100-240V Inlet
Input Current (A):	20
Input Current Rated (A):	16
Input Nominal Voltage (V):	208
Input Phase:	1-Phase (L-N)
Input Cord Location:	Bottom/Front
Outlet Form Factor:	Conventional
Total Outlets:	26
IEC C13 Count:	24
IEC C19 Count:	2

★★★ CB-26VOAE01F6 (Basic) Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7
Download Datasheet
Input Power Capacity (kW):	1.9
Input Plug Type:	IEC C20 100-240V Inlet
Input Current (A):	16
Input Current Rated (A):	16
Input Nominal Voltage (V):	120
Input Phase:	1-Phase (L-N)
Input Cord Location:	Bottom/Front
Outlet Form Factor:	Conventional
Total Outlets:	26
IEC C13 Count:	24
IEC C19 Count:	2
