Family and Product Details

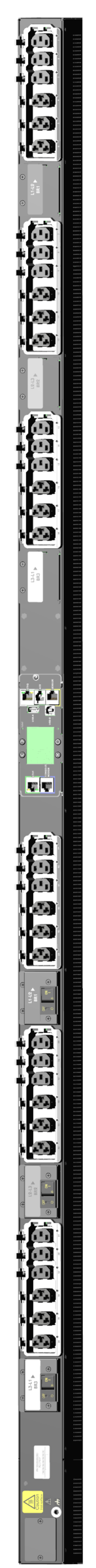

This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with a Raritan Xerus Technology state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control with support for Raritan plug and play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
- Branch Monitoring: Current (A)
- Branch Overcurrent Protection: 10 kAIC
- Branch Overcurrent Protection Type: Circuit Breaker: 2-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display: Auto-Orient
- Input Monitoring: PIPS
- Locking Outlets: Yes
- Max Operating Temperature: 60 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: None
- PDU Platform: PRO3X
- Power Pivot Input: No
- Product Height (inch): 70.0
- Product Height (mm): 1778
- Product Max Depth (inch): 3.19
- Product Max Depth (mm): 82
- Product Nominal Depth (inch): 2.5
- Product Nominal Depth (mm): 64
- Product Width (inch): 2.2
- Product Width (mm): 56
- Product Specifications
★★★ C3W36RL-YCJE2MT3 (Switched) Download Datasheet Input Power Capacity (kW): 8.6 Input Plug Type: NEMA L21-30P Input Current (A): 30 Input Current Rated (A): 24 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Wye (L-L) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 36 IEC C13 Count: 18 Cx Count: 18
★★★ C3W36RL-DCJE2MT3 (Switched) Download Datasheet Input Power Capacity (kW): 8.6 Input Plug Type: NEMA L15-30P Input Current (A): 30 Input Current Rated (A): 24 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 36 IEC C13 Count: 18 Cx Count: 18
★★★ PRO3X - PDU Network Connection Setup Guide ★★★ PRO3X Factory Default Reset ★★★ PRO3X User Guide - CLI ★★★ PRO3X User Guide - Features ★★★ PRO3X User Guide - GUI
★★★ AN PRO2-001: How do I maximize uptime using power data from the equipment cabinet? ★★★ AN PRO2-002: How do I use a cabinet PDU to help manage equipment deployment? ★★★ AN SPM-001: How do I leverage cabinet PDU information to help plan for growth?
Have a power strategy expert contact me!
PRO3X Switched C3W36RL 5.7kW – 8.6kW (18) C13 outlets & (18) Cx outlets
