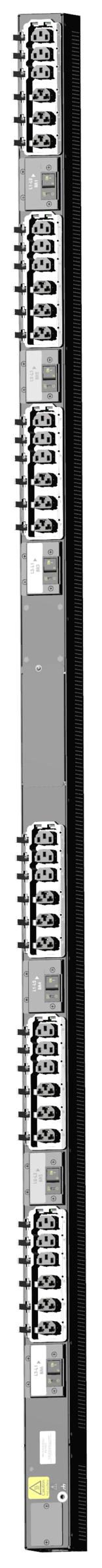

PRO3X Basic C3B36RL 14.4kW – 17.3kW (18) C13 outlets & (18) Cx outlets Rack PDU
More Info:
Contact UsMore Info:
Family and Product Details
-
Family Description
This all new Server Technology Basic PDU features RamLock, a self-locking, elbow-catch mechanism to prevent accidental cord disconnects on standard network power cords along with HDOT Cx, a hybrid C13/C19 outlet that accepts either an IEC C14 or C20 plug. The PDU features dedicated HDOT C13 outlets and HDOT Cx which can be treated as either a C13 or C19 outlet.
-
Family Specifications
- Branch Monitoring: None
- Branch Overcurrent Protection: 10 kAIC
- Branch Overcurrent Protection Type: Circuit Breaker: 2-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display: None
- Input Monitoring: None
- Locking Outlets: Yes
- Max Operating Temperature: 60 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: None
- PDU Platform: PRO3X
- Power Pivot Input: No
- Product Height (inch): 70.0
- Product Height (mm): 1778
- Product Max Depth (inch): 3.19
- Product Max Depth (mm): 82
- Product Nominal Depth (inch): 2.5
- Product Nominal Depth (mm): 64
- Product Width (inch): 2.2
- Product Width (mm): 56
- Product Specifications
-
★★★ C3B36RL-DQJE0AT2 (Basic) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Delta 60A IEC 60309 3P+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 36 IEC C13 Count: 18 Cx Count: 18 -
★★★ C3B36RL-DFJE0AT2 (Basic) Download Datasheet Input Power Capacity (kW): 14.4 Input Plug Type: CS8365 3P+G 50A Input Current (A): 50 Input Current Rated (A): 40 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 36 IEC C13 Count: 18 Cx Count: 18 -
★★★ C3B36RL-YQJE0AT2 (Basic) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Wye 60A IEC 60309 3P+N+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Wye (L-L) Input Cord Location: Bottom/End Outlet Form Factor: Total Outlets: 36 IEC C13 Count: 18 Cx Count: 18
- Drawings
- Documents
