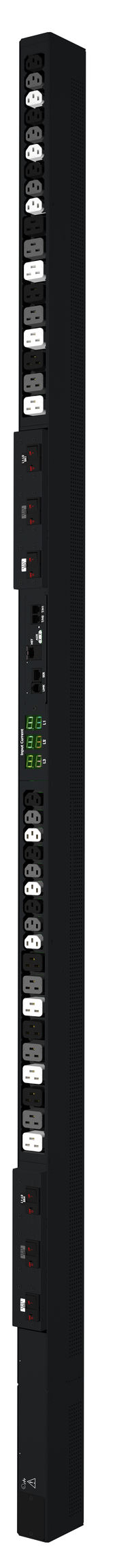

PRO1™ HDOT® Smart C1S42CA 14.4kW - 17.3kW 3-Ph Rack PDU
Key Features
-
Network Monitoring
The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Hot-Swap Network Card
Network access is ensured when power is lost to the Primary unit with backup power provided by the primary Expansion unit.
-
Star Multi-Linking
PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card.
-
Temperature/ Humidity Monitoring
PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Auto-Flip Current Display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
Branch Circuit Protection
PRO1 meets the UL and IEC 60950-1 requirement for branch circuit protection through use of UL489 rated magnetic-hydraulic circuit breakers or UL248 fuses.
-
Alternating-Phase Outlets
3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.
-
High-Density Outlet Technology
The highest outlet density available in a network connected PDU. Meets IEC C13 and C19 specifications, plus high native retention and UL94V-0 flame rating.
-
High Retention Locking Outlets
PRO1 receptacles have high retention and are compatible with P-Lock type power cords.
-
High Temperature Rating
This product has been tested and approved for safe and reliable operation in 60°C (140°F) data center environments.
-
Flexible Mounting
PRO1 includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
-
Color Identification
Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black.
-
Cisco EnergyWise¹ Compliant
PRO1 meets the requirements set forth by Cisco Systems, Inc. for its EnergyWise program for monitoring of device energy. EnergyWise is a registered trademark of Cisco Systems, Inc.
More Info:
Can't find what you're looking for?
Family and Product Details
-
Family Specifications
- Branch Monitoring: Sense
- Branch Overcurrent Protection: 5 kAIC
- Branch Overcurrent Protection Type: Circuit Breaker: 2-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display: Auto-Orient
- Input Monitoring: PIPS
- Locking Outlets: Yes
- Max Operating Temperature: 60 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: None
- PDU Platform: PRO1
- Power Pivot Input: No
- Product Height (inch): 70.0
- Product Height (mm): 1778
- Product Max Depth (inch): 3.5
- Product Max Depth (mm): 89
- Product Nominal Depth (inch): 3.0
- Product Nominal Depth (mm): 77
- Product Width (inch): 1.75
- Product Width (mm): 45
- Product Specifications
-
★★★ C1S36CA-YQME2766 (Smart) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Wye 60A IEC 60309 3P+N+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Wye (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 36 IEC C13 Count: 24 IEC C19 Count: 12 -
★★★ C1S36CA-DFME2766 (Smart) Download Datasheet Input Power Capacity (kW): 14.4 Input Plug Type: CS8365 3P+G 50A Input Current (A): 50 Input Current Rated (A): 40 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 36 IEC C13 Count: 24 IEC C19 Count: 12 -
★★★ C1S42CA-YQME2700 (Smart) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Wye 60A IEC 60309 3P+N+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Wye (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 42 IEC C13 Count: 42 -
★★★ C1S42CA-DQME2700 (Smart) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Delta 60A IEC 60309 3P+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 42 IEC C13 Count: 42 -
★★★ C1S42CA-DFME2700 (Smart) Download Datasheet Input Power Capacity (kW): 14.4 Input Plug Type: CS8365 3P+G 50A Input Current (A): 50 Input Current Rated (A): 40 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 42 IEC C13 Count: 42 -
★★★ C1S36CA-DQME2766 (Smart) Download Datasheet Input Power Capacity (kW): 17.3 Input Plug Type: 208V Delta 60A IEC 60309 3P+G 9Hr Input Current (A): 60 Input Current Rated (A): 48 Input Nominal Voltage (V): 208 Input Phase: 3-Phase Delta (L-L) Input Cord Location: Bottom/End Alternating Phase Outlets: true Outlet Form Factor:
Total Outlets: 36 IEC C13 Count: 24 IEC C19 Count: 12
