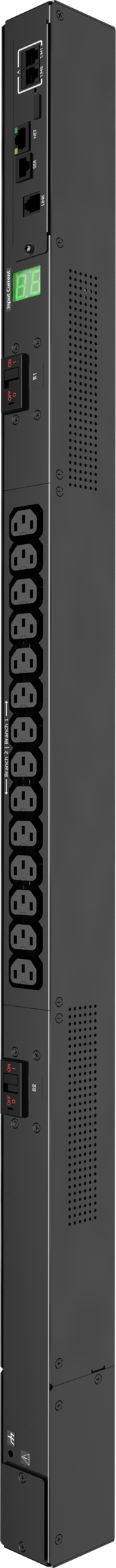

PRO1 Smart HDOT 3.3kW - 5.0kW (12-14) outlets Rack PDU
Key Features
-
Network Monitoring
The PRO1 hot-swappable network card provides for HTTP(S), SSH, Telnet,SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
-
Hot-Swap Network Card
Network access is ensured when power is lost to the Primary unit with backup power provided by the primary Expansion unit.
-
Star Multi-Linking
PRO1 provides the ability to link up to four power circuits using one IP address. First link provides backup power to network card.
-
Temperature/ Humidity Monitoring
PRO1 Primary and Expansion units each support two external 10' (3m) T/H probes. Receive SNMP-based alerts and email notifications.
-
Auto-Flip Current Display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
-
Per-Inlet Power Sensing
Meets ANSI C12.1 for billing-grade accuracy of Current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
-
High-Density Outlet Technology
The highest outlet density available in a network connected PDU. Meets IEC C13 and C19 specifications, plus high native retention and UL94V-0 flame rating.
-
High Retention Locking Outlets
PRO1 receptacles have high retention and are compatible with P-Lock type power cords.
-
High Temperature Rating
This product has been tested and approved for safe and reliable operation in 60°C (140°F) data center environments.
-
Flexible Mounting
PRO1 includes standard button mounts along with provisions for custom mounting brackets (contact Server Technology for details).
-
Color Identification
Choose from six colors to designate circuits for rack PDUs in the data center. Color options include Blue, Red, Green, White, Yellow, and Black.
More Info:
Can't find what you're looking for?
Family and Product Details
-
Family Specifications
- Branch Monitoring: None
- Branch Overcurrent Protection: 5 kAIC
- Branch Overcurrent Protection Type: Circuit Breaker: 2-pole
- Dual Input: No
- High Retention Outlets: Yes
- Input Current Display: Auto-Orient
- Input Monitoring: PIPS
- Locking Outlets: Yes
- Max Operating Temperature: 60 °C
- Fast Movers: No
- Mounting: 0U Vertical
- Outlet Monitoring: None
- PDU Platform: PRO1
- Power Pivot Input: No
- Product Height (inch): 37.25
- Product Height (mm): 947
- Product Max Depth (inch): 2.25
- Product Max Depth (mm): 58
- Product Nominal Depth (inch): 2.25
- Product Nominal Depth (mm): 58
- Product Width (inch): 1.75
- Product Width (mm): 45
- Product Specifications
-
★★★ C1S14CS-2CBA150 (Smart) Download Datasheet Input Power Capacity (kW): 5.0 Input Plug Type: NEMA L6-30P Input Current (A): 30 Input Current Rated (A): 24 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 14 IEC C13 Count: 14 -
★★★ C1S13CS-2CBA152 (Smart) Download Datasheet Input Power Capacity (kW): 5.0 Input Plug Type: NEMA L6-30P Input Current (A): 30 Input Current Rated (A): 24 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 11 IEC C19 Count: 2 -
★★★ C1S13CS-0ABA152 (Smart)
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7Download Datasheet Input Power Capacity (kW): 3.3 Input Plug Type: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 11 IEC C19 Count: 2 -
★★★ C1S14CS-EPBA150 (Smart) Download Datasheet Input Power Capacity (kW): 7.3 Input Plug Type: IEC 230V/32A 2P+PE 6Hr Input Current (A): 32 Input Current Rated (A): 32 Input Nominal Voltage (V): 230 Input Phase: 1-Phase (L-N) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 14 IEC C13 Count: 14 -
★★★ C1S14CS-0ABA150 (Smart)
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7Download Datasheet Input Power Capacity (kW): 3.3 Input Plug Type: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 14 IEC C13 Count: 14 -
★★★ C1S13CS-EPBA152 (Smart) Download Datasheet Input Power Capacity (kW): 7.3 Input Plug Type: IEC 230V/32A 2P+PE 6Hr Input Current (A): 32 Input Current Rated (A): 32 Input Nominal Voltage (V): 230 Input Phase: 1-Phase (L-N) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 11 IEC C19 Count: 2 -
★★★ C1S14CS-OABA150 (Smart)
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7Download Datasheet Input Power Capacity (kW): 3.3 Input Plug Type: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 14 IEC C13 Count: 14 -
★★★ C1S13TS-0ABA154 (Smart)
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7Download Datasheet Input Power Capacity (kW): 3.3 Input Plug Type: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 9 Cx Count: 4 -
★★★ C1S13TS-2CBA154 (Smart) Download Datasheet Input Power Capacity (kW): 5.0 Input Plug Type: NEMA L6-30P Input Current (A): 30 Input Current Rated (A): 24 Input Nominal Voltage (V): 208 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 9 Cx Count: 4 -
★★★ C1S13TS-EPBA154 (Smart) Download Datasheet Input Power Capacity (kW): 7.3 Input Plug Type: IEC 230V/32A 2P+PE 6Hr Input Current (A): 32 Input Current Rated (A): 32 Input Nominal Voltage (V): 230 Input Phase: 1-Phase (L-N) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 9 Cx Count: 4 -
★★★ C1S13TS-OABA154 (Smart)
Requires PTCORD-L1, -L2, -L3, -L4, -L5, -L6, or –L7Download Datasheet Input Power Capacity (kW): 1.9 Input Plug Type: IEC C20 100-240V Inlet Input Current (A): 20 Input Current Rated (A): 16 Input Nominal Voltage (V): 120 Input Phase: 1-Phase (L-L) Input Cord Location: Bottom/Front Outlet Form Factor:
Total Outlets: 13 IEC C13 Count: 9 Cx Count: 4
